UV-4615
UV-4615

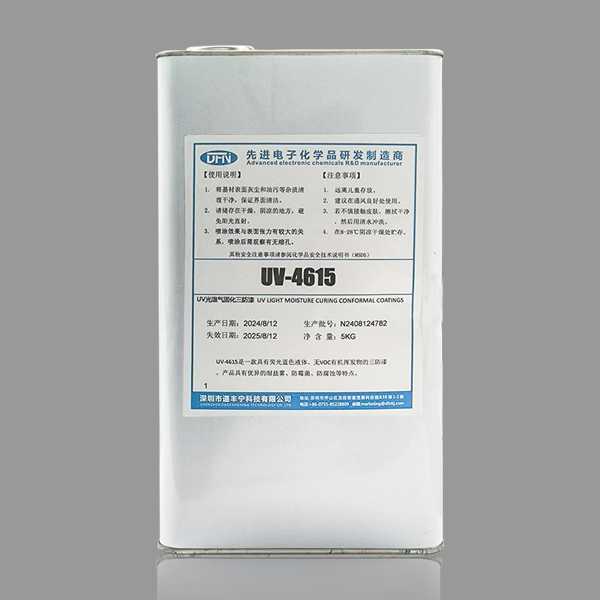

UV-4615 UV+moisture curing three proof paint

Product Introduction:

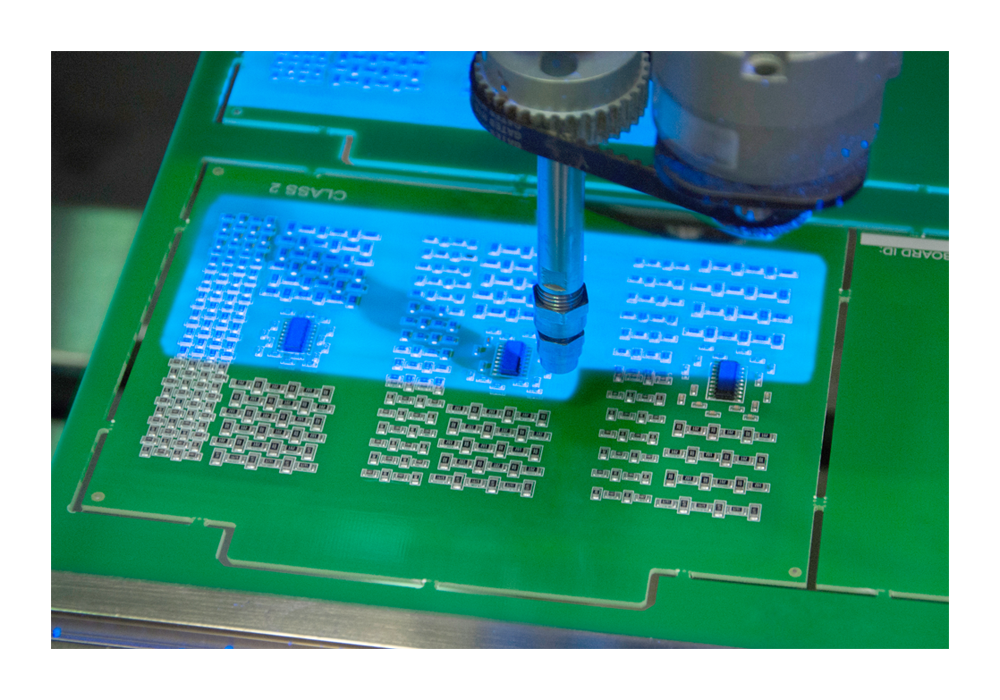

UV-4615 UV is a single component ultraviolet (UV) and moisture dual curing coating product containing fluorescent indicators. The product is a transparent amber liquid widely used for PCBA protection, which can effectively improve the electrical performance of PCBA and the long-term reliability of circuits.


Brand: Daofengning


model: UV-4615


Shelf life: 6 months

Enquiry Hotline:+86-0755-85228809

Product Specification

Product name
UV Three proof Paint
Manufacturer
Daofengning
Temperature range
-40°C-+150°C
Viscosity(mPa·s)
300
Surface dry energy(mJ/cm²)
1200
Quality guarantee period
Store in a dry place for 6 months
Model
UV-4615
Product Color
Fluorescent blue liquid
Product specifications
1KG/5KG
Proportion
1.05g/cm³
Hardness(SHD)
65
Moisture curing time(H)
72

Application field

PCBA

Matters needing attention

1

1. Clean the surface of the PCBA of dust, oil stains, and solder residue.

2. The product should be sealed and stored in a cool and dry place, with a shelf life of 6 months.

3. The spraying effect is closely related to the surface tension. Before use, it is necessary to match the three proof paint with the PCBA, and observe whether there are shrinkage holes or other conditions after spraying.

4.If this product accidentally gets on the skin, please wash it immediately with soapy water. If it accidentally gets on the eyes, please wash it with plenty of water first and then seek medical attention.

5. When using this product, do not dispose of unused chemicals at will, as it may cause accidents.

6. Please store away from children and use necessary protective equipment when using this product, such as respiratory masks, rubber gloves, protective clothing, etc., to prevent unknown adverse effects.

TDS Download

If you need more information about the product, you can obtain it from the following ways:

Email to dfn@dfnkj.com

Directly contact the sales staff of Tao Fengning and the distributors to obtain

+86-0755-85228809
